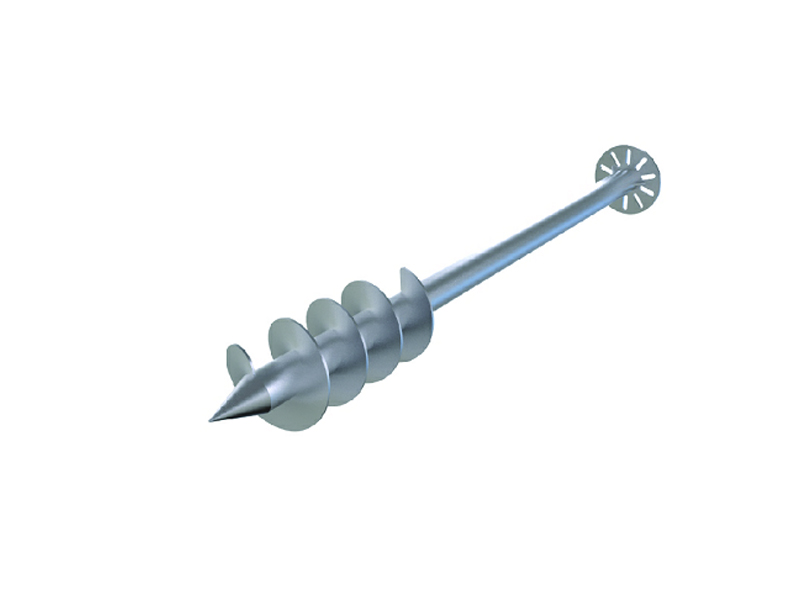

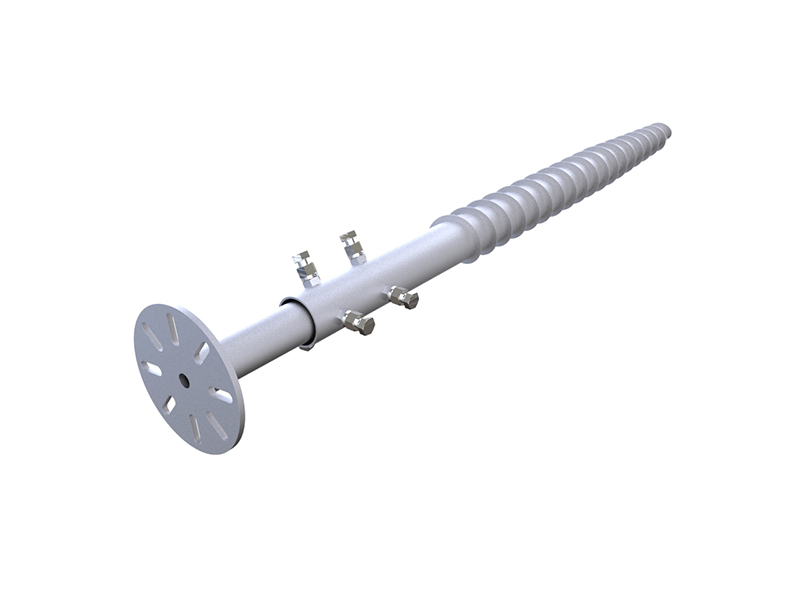

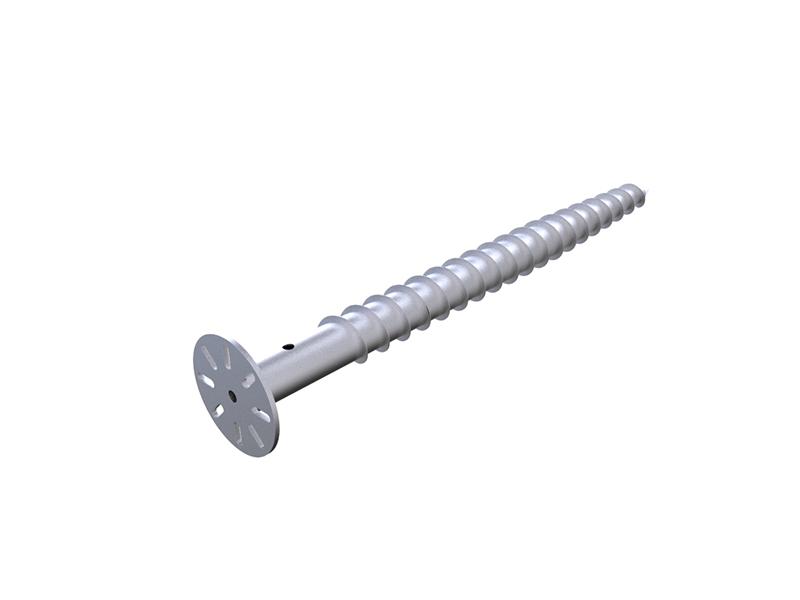

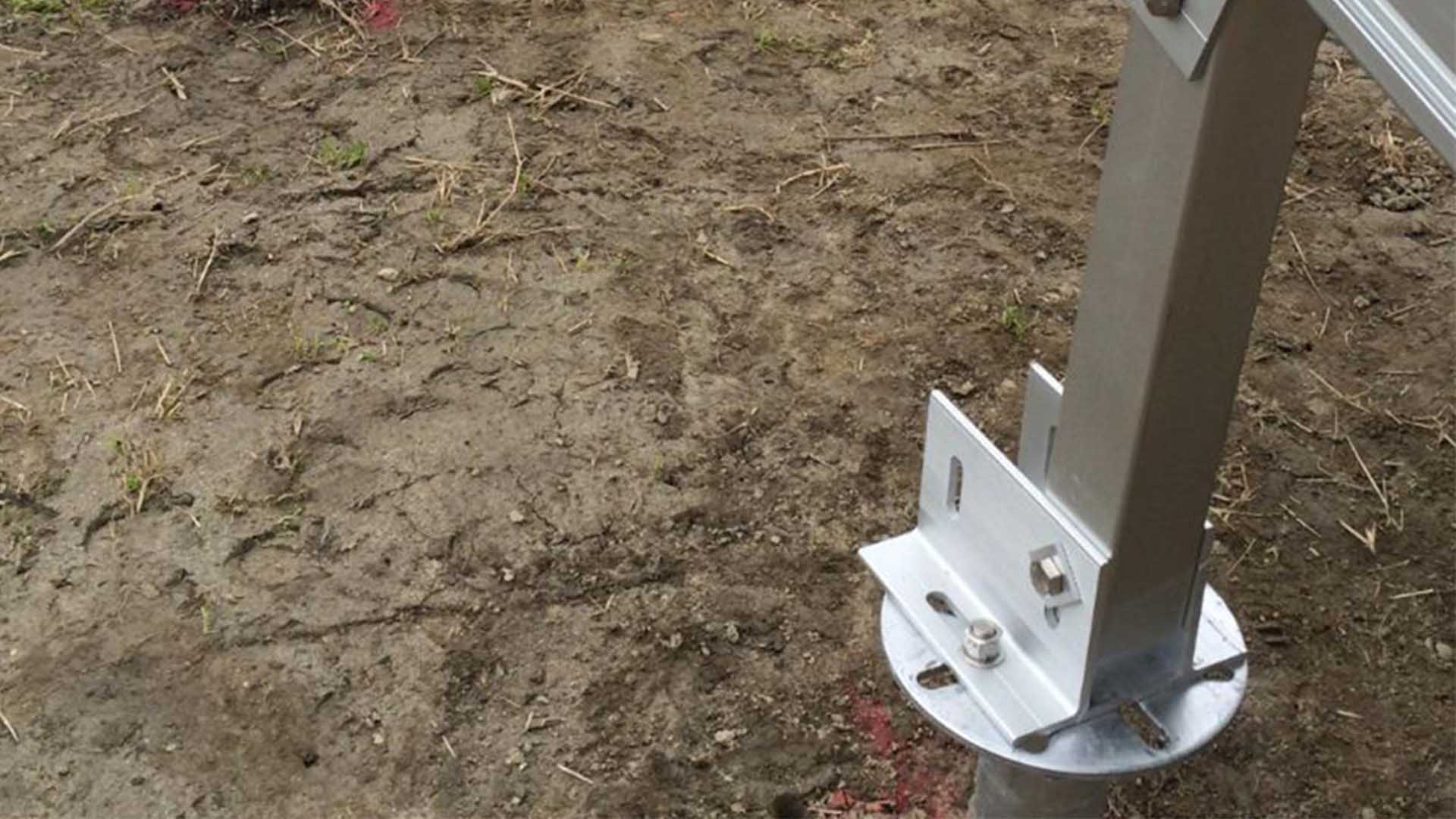

Introducing the JinMega Solar Ground Screw, a revolutionary solution for secure and efficient solar mount installation in even the most challenging soil environments. Our ground screw system is specifically designed to be inserted into the land and connected to the parts on the ground, providing a stable foundation for solar structures.
We provide fully engineered foundation designs for any structure，and can be installed with extreme soil environment, like unstable terrain, boulders, bedrock & elevation changes.

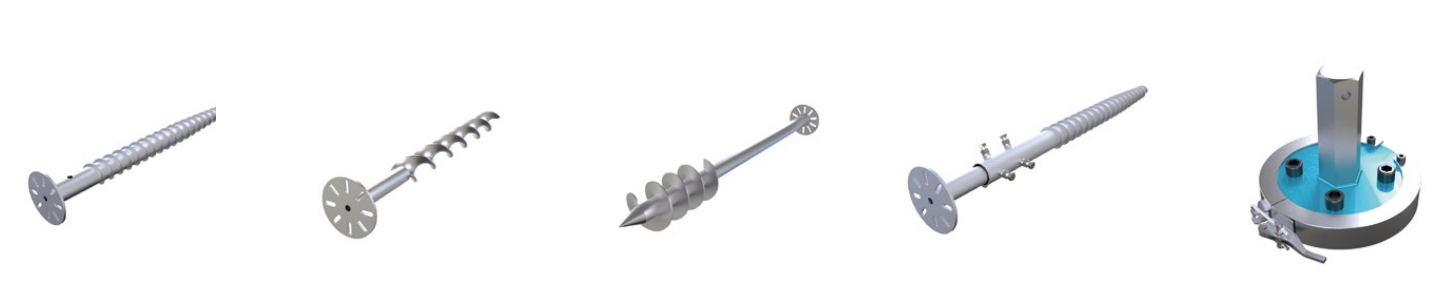

For different application scenarios such as mountainous and flat areas, we can provide perfect anchor bolt foundation support for your project.
Serivice and Support
- Pre-Assembly Support: Simplifies construction processes and saves time，Designed for hassle-free setup and reduced labor costs;
- Durability & Stability: Engineered to withstand demanding environments;
- Technical Support：With over 10 years of experience in solar bracket design, we provide you with pre-sales and after-sales technical services;

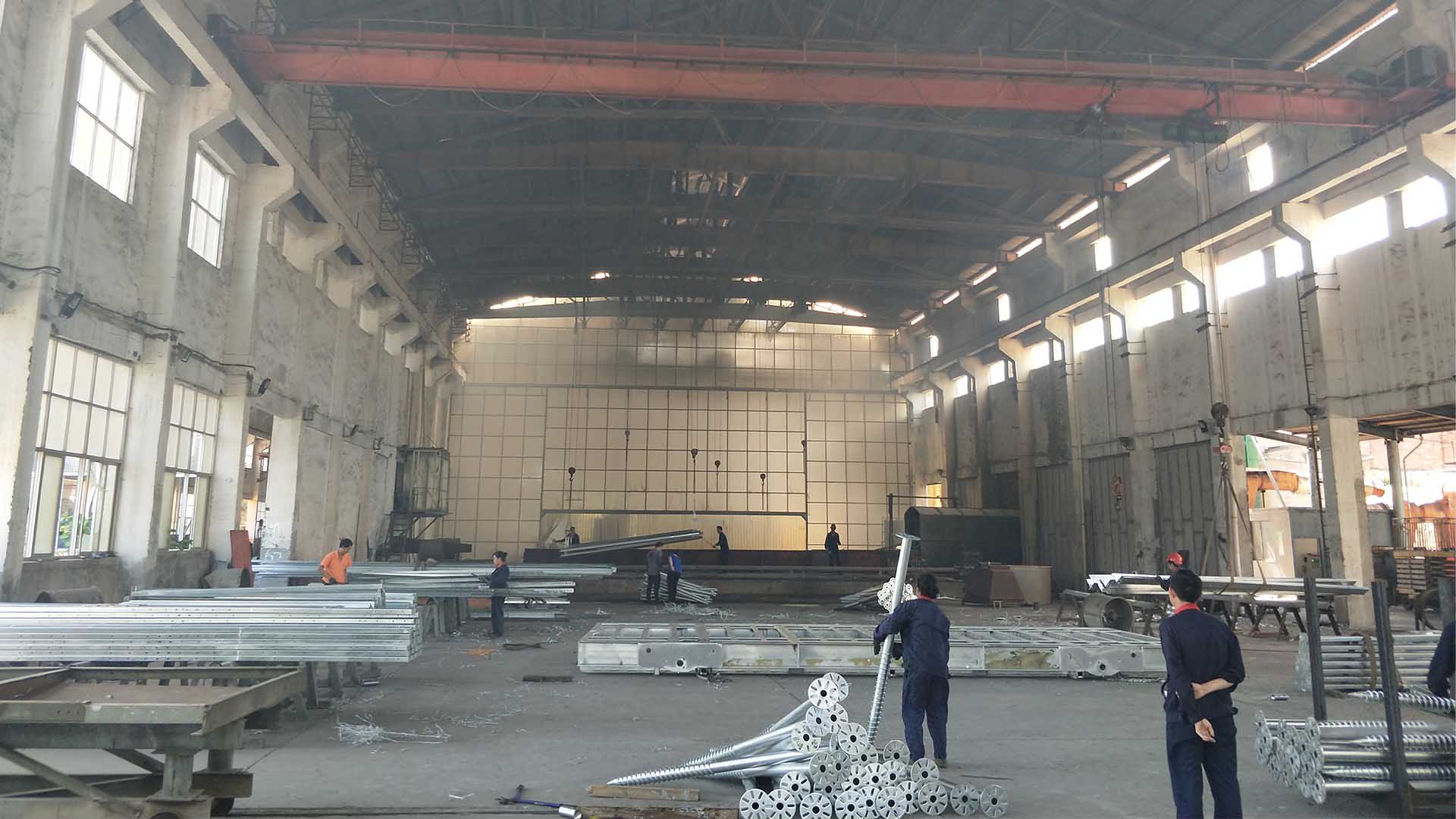

- Quick Delivery: Efficient timelines supported by our self-owned factories;
- Customized Solutions: Tailored designs to meet diverse project needs，One-on-One one design service;
-OEM /Wholesale/Retail:Multiple cooperation model to choose.

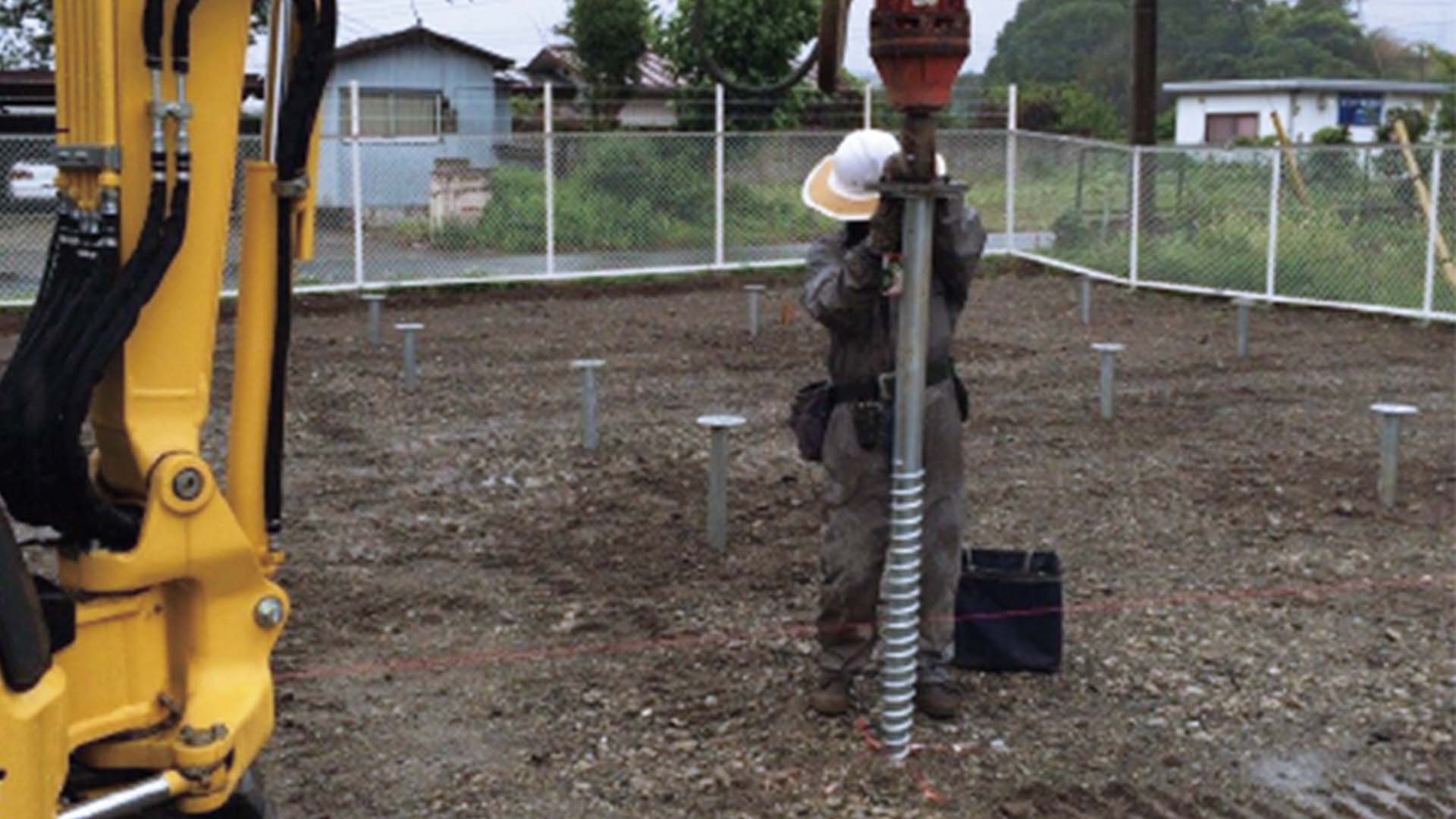

Location:Japan Project Time：2017 Capacity:12MW Solution:Agricultural Farmland Solar Mounting System
| Item NO | Diameter(mm) | Thickness(mm) | Flange(mm) | Tension and pressure when the flange is 200mm above the floor | |||||||||
| Clay soil N value | Sandy soil N value | ||||||||||||
| 3 | 5 | 10 | 15 | 25 | 3 | 5 | 10 | 15 | 25 | ||||
| JM-F76-1200-T3 | 76 | 3 | 220 | 4.6 | 8.4 | 17.8 | 27.3 | 45.8 | 6.1 | 8.9 | 15.4 | 22.9 | 36.9 |
| JM-F76-1400-T3 | 76 | 3 | 220 | 5.9 | 10.6 | 22.4 | 34.3 | 57.7 | 7.7 | 11.2 | 20 | 28.8 | 46.7 |
| JM-F76-1600-T3 | 76 | 3 | 220 | 7.3 | 13.1 | 27.6 | 42.1 | 71.2 | 9.4 | 13.8 | 24.7 | 35.7 | 57.4 |
| JM-F76-1800-T3 | 76 | 3 | 220 | 8.9 | 15 | 31.6 | 48.2 | 81.4 | 10.8 | 15.8 | 28.2 | 40.9 | 65.9 |
| JM-F76-2000-T3 | 76 | 3 | 220 | 9.3 | 17.3 | 36.5 | 55.7 | 94.1 | 12.5 | 18.2 | 32.6 | 47.8 | 75.6 |
| JM-F76-2200-T3 | 76 | 3 | 220 | 10.7 | 18.1 | 38.3 | 58.8 | 98.8 | 13.4 | 19.2 | 34.3 | 49.5 | 79.9 |
| JM-F76-2500-T3 | 76 | 3 | 220 | 11.8 | 20.7 | 43.7 | 66.8 | 112.8 | 15.5 | 21.9 | 39.1 | 56.5 | 90.6 |
| JM-F76-3000-T3 | 76 | 3 | 220 | 13.9 | 25 | 52.8 | 80.9 | 136.2 | 18.9 | 26.4 | 47.3 | 68.3 | 109 |
The Pole Ground Mounting System for Solar PV Panels is a flexible and space-efficient option tailored for mounting photovoltaic panels onto poles. It is ideally suited for locations constrained by limited or difficult ground space, including rural settings, remote off-grid locations, agricultural lands, or uneven terrains. This mounting system provides a sturdy and dependable base for solar panels, maximizing energy harvesting while minimizing its footprint. Stable:Suitable for rugged ground to reduce land preparation and construction time while ensuring strength. Efficient:Simple structure&easy and fast installation. Flexible：Customized as per design reference, saving material and reducing cost .
Read More
The Carbon Steel Dual Pole Ground Mounting System, a sturdy and high-performance solution tailored for extensive solar installations, especially in rugged landscapes. This innovative mounting structure offers unparalleled stability and endurance for photovoltaic panels. Designed to meet the demands of utility-scale solar farms, commercial projects, and large ground-mounted solar arrays, this system ensures reliable and long-lasting support for your solar energy needs. Stable:. Made of high-quality AL6005-T5 & SUS304 applied, with strong anti-corrosion performance,SGS tested for all parts. Efficient:. Pre-assembled for easy and fast installation to save the labor & time. Flexible：Cost-effective, individual & optimized design solution as per specific project condition.Flexible design combinations for actual customized demands.
Read More
JinMega U-shaped Pole Ground Solar Mounting Systems is a suitable option for large-scale and utility-scale solar PV power plants. The system features hot-dip galvanized steel components that offer strong structure strength, stability, and anti-corrosion properties. It is compatible with various solar modules and has a patented and certified design that ensures project safety and facilitates quick installation. Stable:.Made of high-quality AL6005-T5 aluminum and HDG steel applied, with strong anti-corrosion performance，All parts are tested to ensure strength requirements. Efficient:Main parts pre-assembled before shipment, no need processing on site, helps to save installation labor & time cost. Flexible:For hilly terrains, U-profile ramming steel pile mount can save the cost and time of ground leveling,individual & optimized design solution as per specific project condition.
Read More
ZAM Steel(Mg-Al-Zn) ground Solar Mounting System made of ZAM Steel material, which has good corrosion resistance even on saline ground.With high strength,strong corrosion ,self-repair and economical price,Our ZAM Steel solar mounting solution can meet customer's strict requirement. Stable: Stronger corrosion resistance to lower down the maintenance cost,Cost effective than hot-dip galvanized steel structures. Efficient: Pre-assembled before shipment for easy installation on site. Flexible: Stronger corrosion & wear resistance and self-repairing features to reduce the regular maintenance after installation.
Read More
Introducing the JinMega Solar Ground Screw, a revolutionary solution for secure and efficient solar mount installation in even the most challenging soil environments. Our ground screw system is specifically designed to be inserted into the land and connected to the parts on the ground, providing a stable foundation for solar structures. Stable:Made by high strength carbon steel with 80 micron average galvanizing thickness to ensure high anti-corrosion. Efficient:Various ground screws could be used for many kind of applications,Easy and fast installation. Flexible:Monthly capacity: 75,000pcs，Customized available.
Read More
JinMega Aluminum solar mounting system rail provide a robust and reliable support structure for solar panels, ensuring they are securely attached and positioned for optimal energy production. Lightweight: Aluminum is known for its lightweight nature, which makes it easier to handle and install. This characteristic helps reduce the overall weight of the solar panel mounting system and simplifies the installation process. Corrosion Resistance: Aluminum exhibits excellent corrosion resistance, making it ideal for outdoor applications. It can withstand prolonged exposure to moisture, rain, and other weather conditions without rusting or deteriorating. Stable: Aluminum rails provide a sturdy framework for solar panels, ensuring they can withstand external forces such as wind, snow, and other environmental conditions. The rails are designed to distribute the weight of the panels evenly to maintain their stability.
Read More
JinMega Solar Panel Racking System Mid Clamp is an essential component in ground-mounted solar installations, providing stability, alignment, and longevity to the solar array. It is designed to withstand the demands of various applications, making it a reliable choice for large-scale solar farms as well as commercial and residential ground-mounted systems Reliable:Our mid clamp is suit for various types of solar structures. It is engineered to withstand various weather conditions, ensuring the long-term structural integrity of the solar array Stable:The mid clamp enhances the overall stability of ground-mounted solar arrays by providing support and evenly distributing the load among the panels. This helps minimize the risk of damage or deformity to the panels due to excessive stress.
Read More
JinMega Solar Panel Racking System End Clamp is an essential component in ground-mounted solar installations, providing stability, alignment, and longevity to the solar array. It is designed to withstand the demands of various applications, making it a reliable choice for large-scale solar farms as well as commercial and residential ground-mounted systems Reliable:Our mid clamp is suit for various types of solar structures. It is engineered to withstand various weather conditions, ensuring the long-term structural integrity of the solar array. Stable:The mid clamp enhances the overall stability of ground-mounted solar arrays by providing support and evenly distributing the load among the panels. This helps minimize the risk of damage or deformity to the panels due to excessive stress.
Read More
it is currently one of the largest exporters of photovoltaic products in China.
