Manually Adjustable Fixed Structure Ground Mounting Systems

Home Adjustable Fixed Ground Mounting Systems

Manually Adjustable Fixed Structure Ground Mounting Systems

Manually Adjustable Fixed Structure Ground Mounting Systems

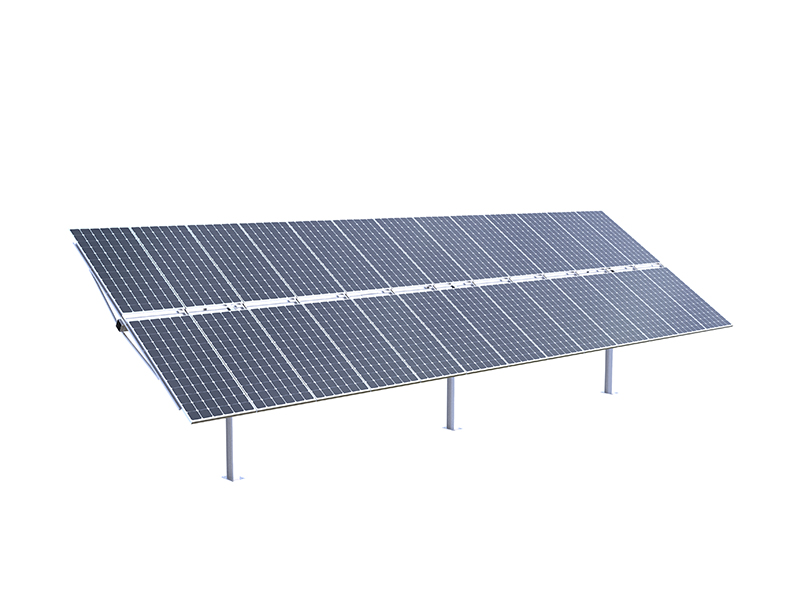

Manually Adjustable Fixed Structure Ground Mounting Systems manually adjustable from south to north (0-60°), it adapts to varying lighting conditions and maximizes power generation. With its flexible design, motor drive is unnecessary, reducing the overall system cost. Compared to fixed mounting systems, it boosts power generation by 3%-10%. Unlock the full potential of solar energy with our innovative solution.

Stable: Made of high-strength carbon steel, structurally stable and reliable

Efficient: Increase 3%-10% power generation compared to fixed mounting systems.Simple structure & easy installation and adjustment to lower maintenance cost.

Flexible:Adapt to most solar modules and up to ±15 degree E-S and 0-60 degree slope terrains，Simple design for easy manual adjustments.

Inquire Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

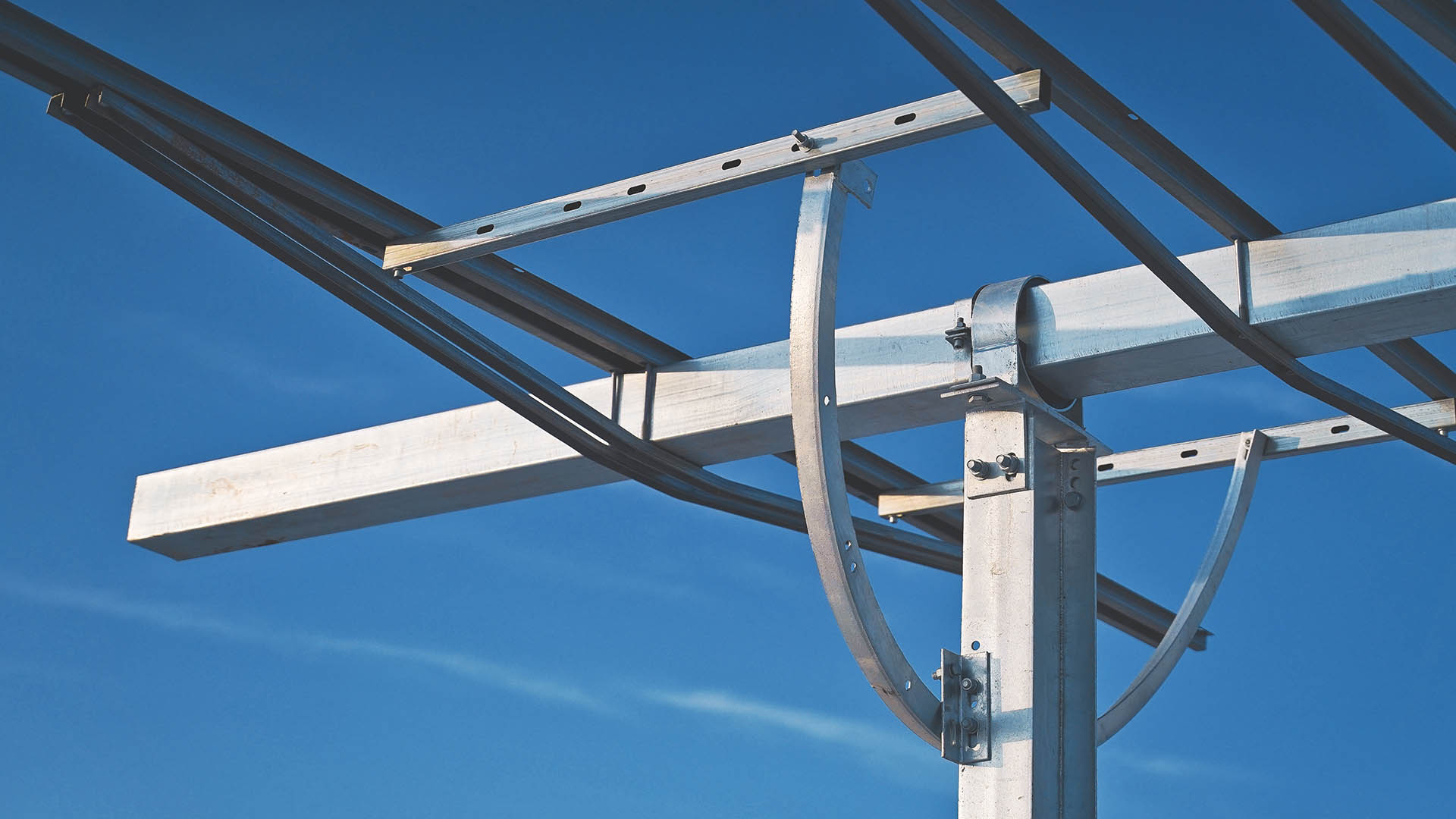

Manually Adjustable Fixed Structure Ground Mounting Systems combines the advantages of jack type and semi-circular arc type, and the jack assists in adjusting the arc.

The tilt angle of photovoltaic modules is adjusted a limited number of times each year according to the optimal tilt angle at different time periods. After each adjustment, the bracket is fixed using its own connectors to form a stable bracket form similar to a fixed tilt angle bracket, improving the power generation efficiency of the modules.

Serivice and Support

- Pre-Assembly Support: Simplifies construction processes and saves time，Designed for hassle-free setup and reduced labor costs;

- Durability & Stability: Engineered to withstand demanding environments;

- Technical Support：With over 10 years of experience in solar bracket design, we provide you with pre-sales and after-sales technical services;

- Quick Delivery: Efficient timelines supported by our self-owned factories;

- Customized Solutions: Tailored designs to meet diverse project needs，One-on-One one design service;

-OEM /Wholesale/Retail:Multiple cooperation model to choose.

Manually Adjustable Fixed Structure Ground Mounting Systems

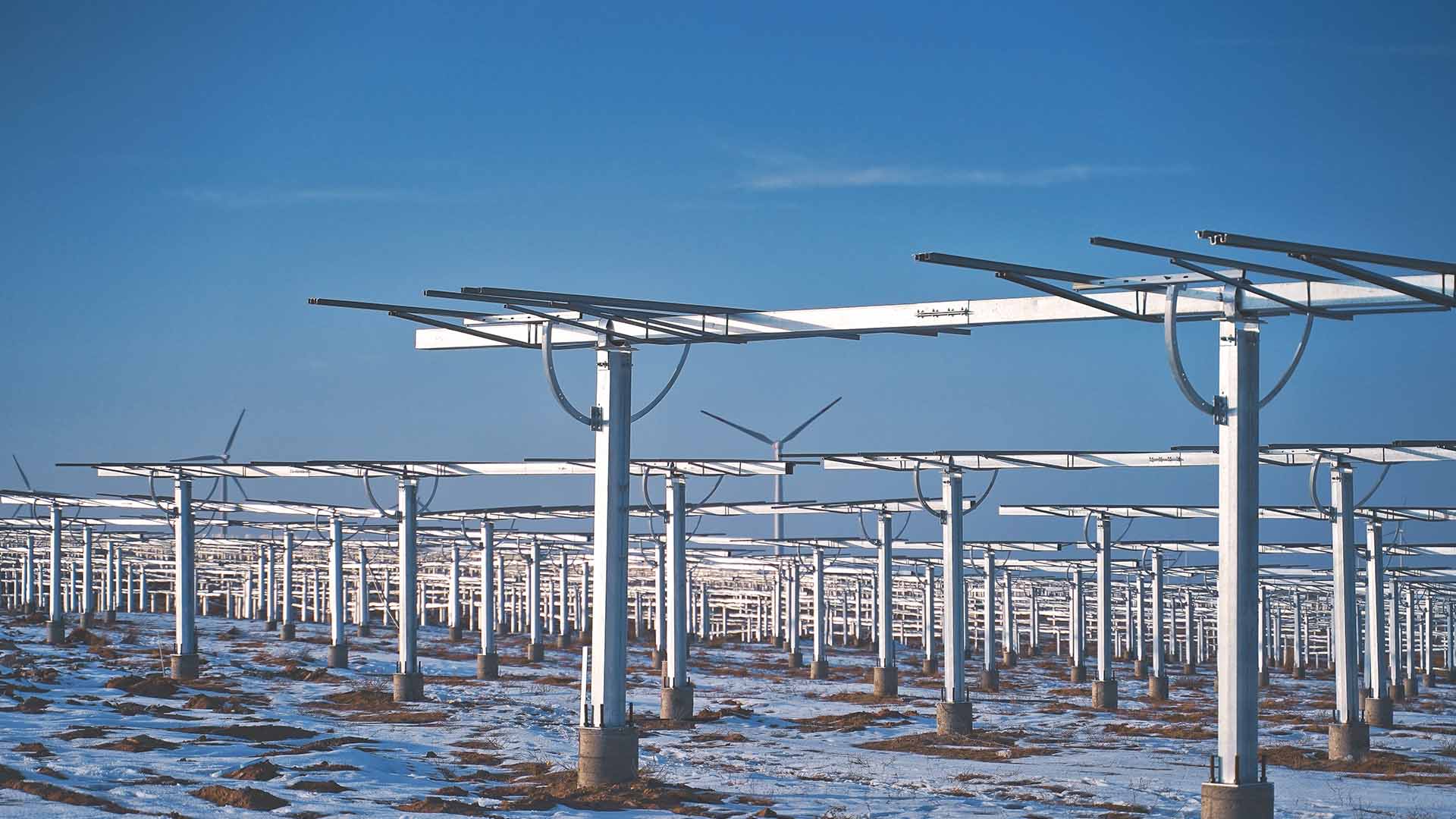

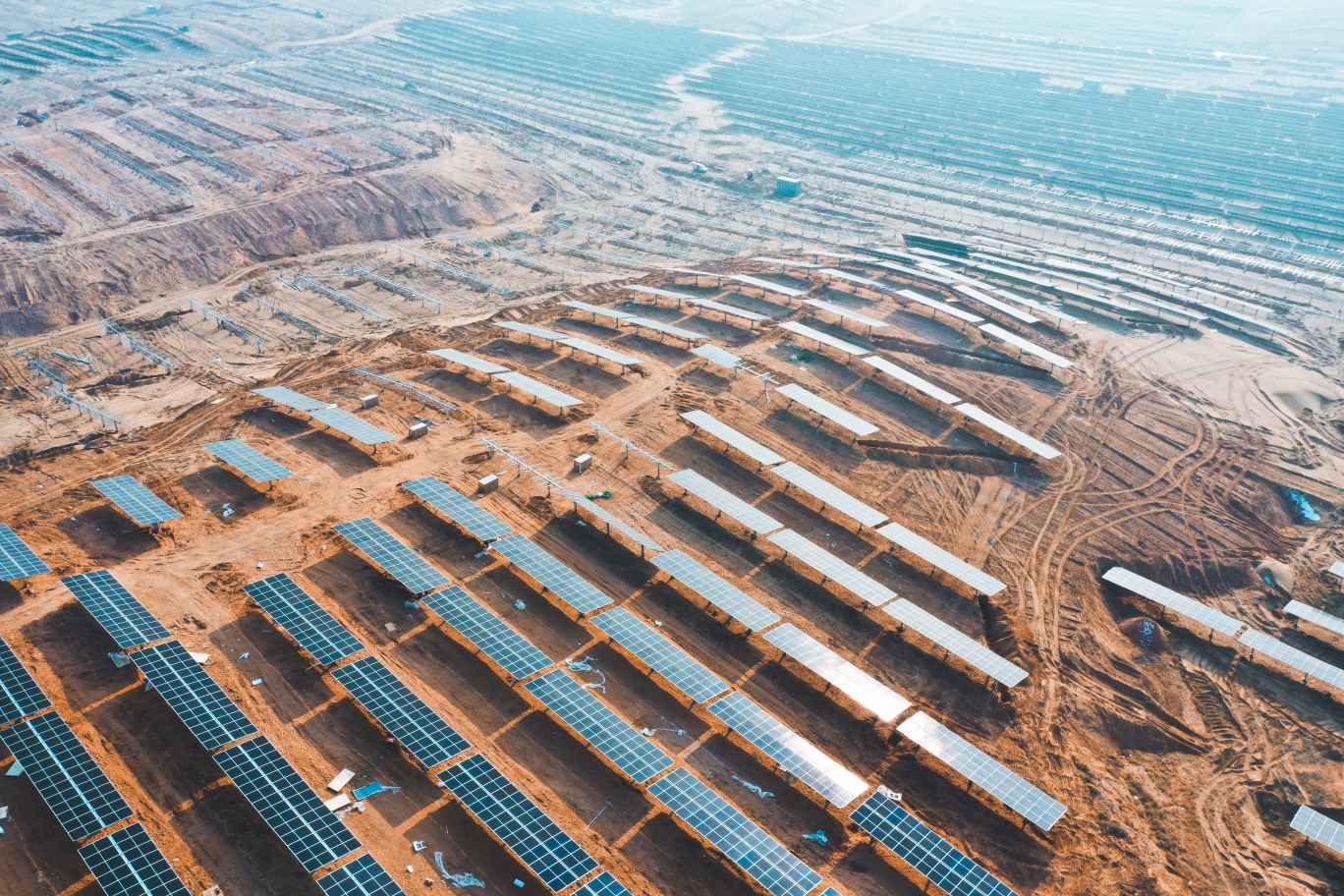

Location:China Project Time：2020 Capacity: 100MW Solution:Manually Adjustable Fixed Structure Ground Mounting Systems

SPECIFICATIONS		SPECIFICATIONS
Wind Load	60m/s（Customizable）	Material	High strength Q235、SUS304、
Snow Load	2KN/m²（Customizable）	Working Temperature	-40°C~70°C
Adjustable tilt angle (S-N)	±60°	Application	Gobi desert, City, desert, mountain, wetland, seaside etc
Adapt to East-West slope	±15 °	Warranty.	10 Years
