Single Row Single Axis Solar PV Tracking Mounting System

Single Row Single Axis Solar PV Tracking Mounting System

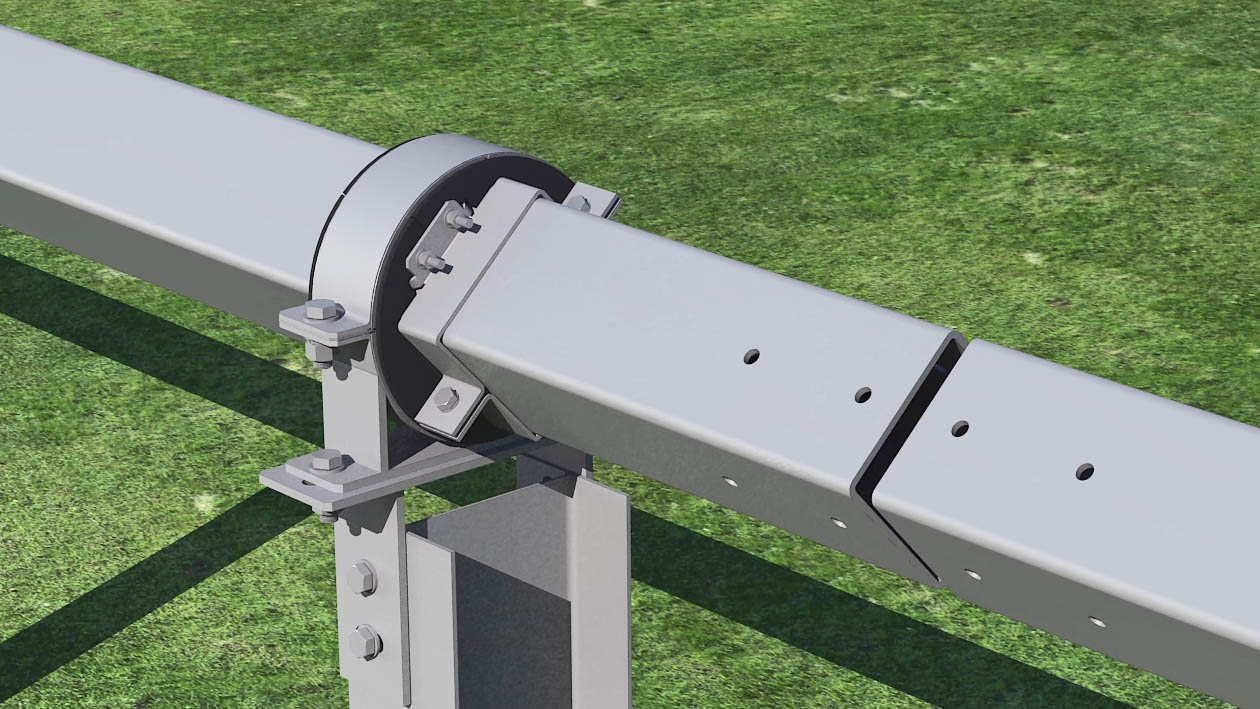

Single Row Single Axis Solar PV Tracking Mounting System independently developed by JinMega team, intelligent algorithm, with high security, high stability, less pile foundation, convenient installation and other multiple advantages.

Stable:Products pass UL, TUV, wind tunnel test, more stable and reliable,Lora wireless system with remote transmission and strong anti-interference.

Efficient: Power generation increased by 15-28%.

Flexible:Adapt to up to 20 degree slope terrains, shorter unit length and better terrain adaptability.

Intelligence：The control system is developed in cooperation with Xiamen University to make it more intelligent,More effective SCADA platform and AI intelligent algorithm with proprietary intellectual property rights.

Inquire Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Single Row Single Axis Solar PV Tracking Mounting System'control system is developed in cooperation with Xiamen University to make it more intelligent,More effective SCADA platform and AI intelligent algorithm with proprietary intellectual property rights.

Mainly applied to large-scale solar power plant at low latitude areas.

With roughly 15-28% power generation, comparing to fixed system.

Serivice and Support

- Pre-Assembly Support: Simplifies construction processes and saves time，Designed for hassle-free setup and reduced labor costs;

- Durability & Stability: Engineered to withstand demanding environments;

- Technical Support：With over 10 years of experience in solar bracket design, we provide you with pre-sales and after-sales technical services;

- Quick Delivery: Efficient timelines supported by our self-owned factories;

- Customized Solutions: Tailored designs to meet diverse project needs，One-on-One one design service;

-OEM /Wholesale/Retail:Multiple cooperation model to choose.

Location:Japan Project Time：2020 Capacity: 6MW Solution: Single Row Single Axis Solar PV Tracking Mounting System

SPECIFICATIONS		SPECIFICATIONS
Modules per Tracker	Up to 90 modules	Control Algorithm	Astronomical & AI algorithms
Tracking Accuracy	±2°	Driving System	Slew drive or linear actuator
Maximum working wind speed	18m/s	Critical wind speed	45m/s (Customizable)
Operation Temperature	-30℃~70℃	Tracking Range	±45/60° (Customizable)
Land Utilization: GCR	25%~50%	Material	Galvanized carbon steel / zinc aluminum magnesium / pregalvanized
Foundation options	Direct ramming / Pre-drilling + ramming / Micropile / PHC piles	Solar module supported	Framed
Protection level	IP65	Service life	For 25 years

ELECTRICAL CONTROL PARAMETERS		ELECTRICAL CONTROL PARAMETERS
Power supply	Grid connection / String powered / Self-powered with battery
Communication Options	LoRa wireless /RS 485 cable	Power Consumption/ day	<0.1KWH (24 hours)
Shadow shadow back/Strong wind protection	Yes	Heavy rain for cleaning/Snow mode/Flood mode	Optional
Quality assurance	Structure：10 years Drive and control components：5years
